Synea Vision Turbines
How to change o-rings of air motor AM-25
Exchanging o-rings: Squeeze the o-ring together between thumb and forefinger to form a loop. Pull off o-rings and slide on new o-rings.
High-end technology for excellent preparation results: Both of the Synea dental turbine lines are characterised by high performance, optimal ergonomics and outstanding value for money. Synea Vision is symbolic of innovations such as the sterilizable 5x Ring LED+ and Synea Fusion promises top quality combined with unbeatable cost-efficiency.

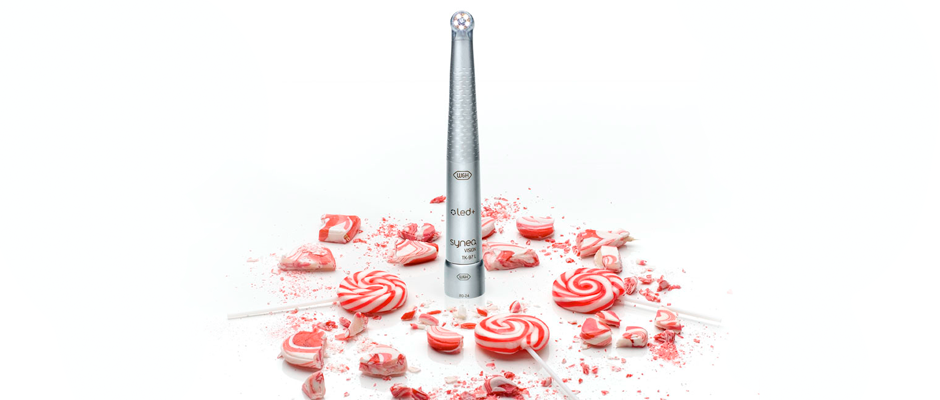

The new range of Synea Vision turbine handpieces
Discover the Synea Vision line – the turbine range for all treatment scenarios!
Your advantages at a glance
- 100% shadowless illumination of the
treatment site with the Ring LED+
(with the Roto Quick system only) - Optimal power
- Optimum cooling of the treatment site
with 5x spray - Four head sizes for every application case
- Hygienic head system
- Scratch-resistant surface improves aesthetics even more – and extends their life
- Fatigue-free work
- Optimum service life and unexpected quietness during operation with ceramic ball bearings
- Thermo washer disinfectable and sterilizable
- 24 months warranty
Power Blade rotor
Patented hygienic head system
Optimum cooling
Microturbine
Ring LED+
Hygiene with no comprise
TK-94
LED+,
5x spray,
Head size Ø 9 mm,
14 W*, 410,000 rpm,
FG burs Ø 1.6 mm for bur lengths up to 16 mm
TK-94 L
REF 30016000
LED+, ceramic ball bearings, coupling system Roto Quick
TK-94 LM
REF 30031000
Compact glass rod, ceramic ball bearings, coupling system Multiflex®**
TK-100
Ring LED+,
5x spray,
Head size Ø 13 mm,
26 W*, 330,000 rpm,
FG burs Ø 1.6 for bur lengths up to 25 mm
TK-100 L
REF 30021000
Ring LED+, ceramic ball bearings, coupling system Roto Quick
TK-100 LM
REF 30022000
Compact glass rod, ceramic ball bearings, coupling system Multiflex®**
TK - 98
Ring LED+,
5x spray,
Head size Ø 11,5 mm,
24 W*, 360,000 rpm,
FG burs Ø 1.6 mm for bur lengths up to 25 mm
TK-98 L
REF 30019000
Ring LED+, ceramic ball bearings, coupling system Roto Quick
TK-98 LM
REF 30020000
Compact glass rod, ceramic ball bearings, coupling system Multiflex®**
TK - 97
Ring LED+,
5x spray,
Head size Ø 10 mm,
21 W*, 400,000 rpm,
FG burs Ø 1.6 mm for bur lengths up to 21 mm
TK-97 L
REF 30017000
Ring LED+, ceramic ball bearings, coupling system Roto Quick
TK-97 LM
REF 30018000
Compact glass rod, ceramic ball bearings, coupling system Multiflex®**
*Performance value applies at a rated pressure of 3 bar and exhaust air pressure of max. 0.2 bar <br> ** Multiflex® is a trademark of a third party not affiliated with W&H Dentalwerk Bürmoos GmbH.
Troubleshooting
Resolve problems quickly and simply yourself. Using the product-specific troubleshooting, you can find the solution quickly here.
Videos & Tutorials
How to change LED ring in Alegra air motor AM-25-L RM
Remove the air motor from supply hose, remove motor sheath and LED-ring.
How to change bulb of air motor AM-25 LT
Changing the bulb is shown in this video of air motor AM-25 LT.
Oil service of Alegra dental air motor
W&H Service Oil F1 in a spray can is ideal for the perfect manual lubrication of Alegra dental air motor.
